Seat Belts
Seat belts could be ordered from the factory, but most were installed by the dealer.
As a result, the original ones varied by type and installation.

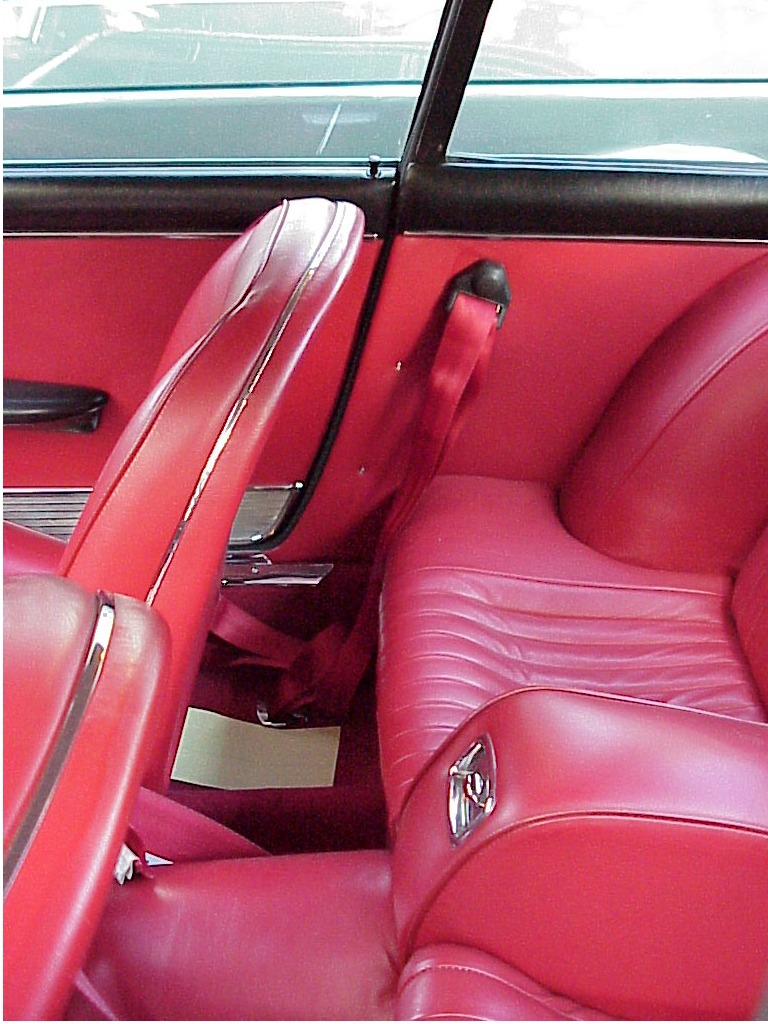

Front
Pininfarina provided mounting locations for both a shoulder harness and seat belts when they built the car.

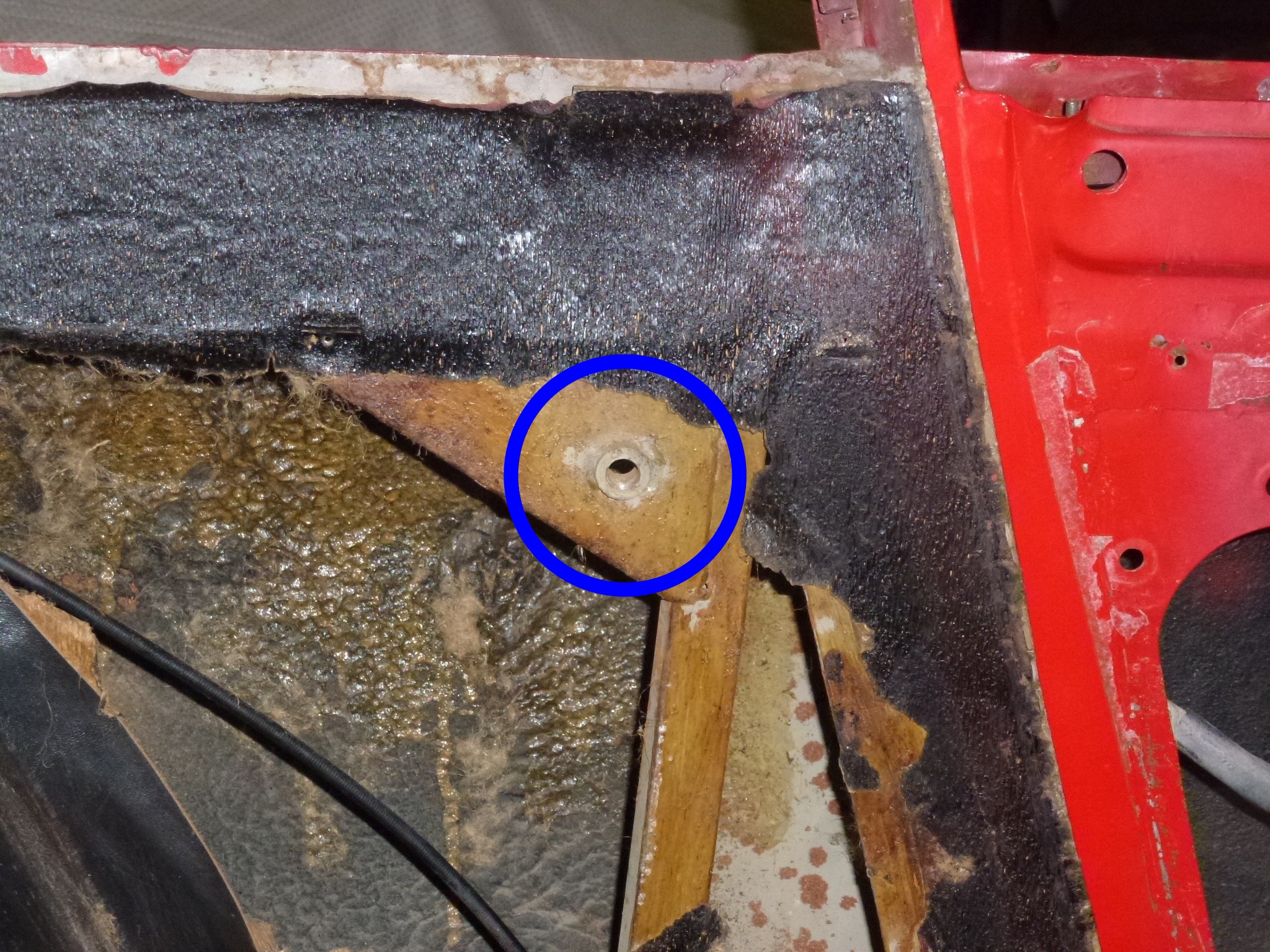

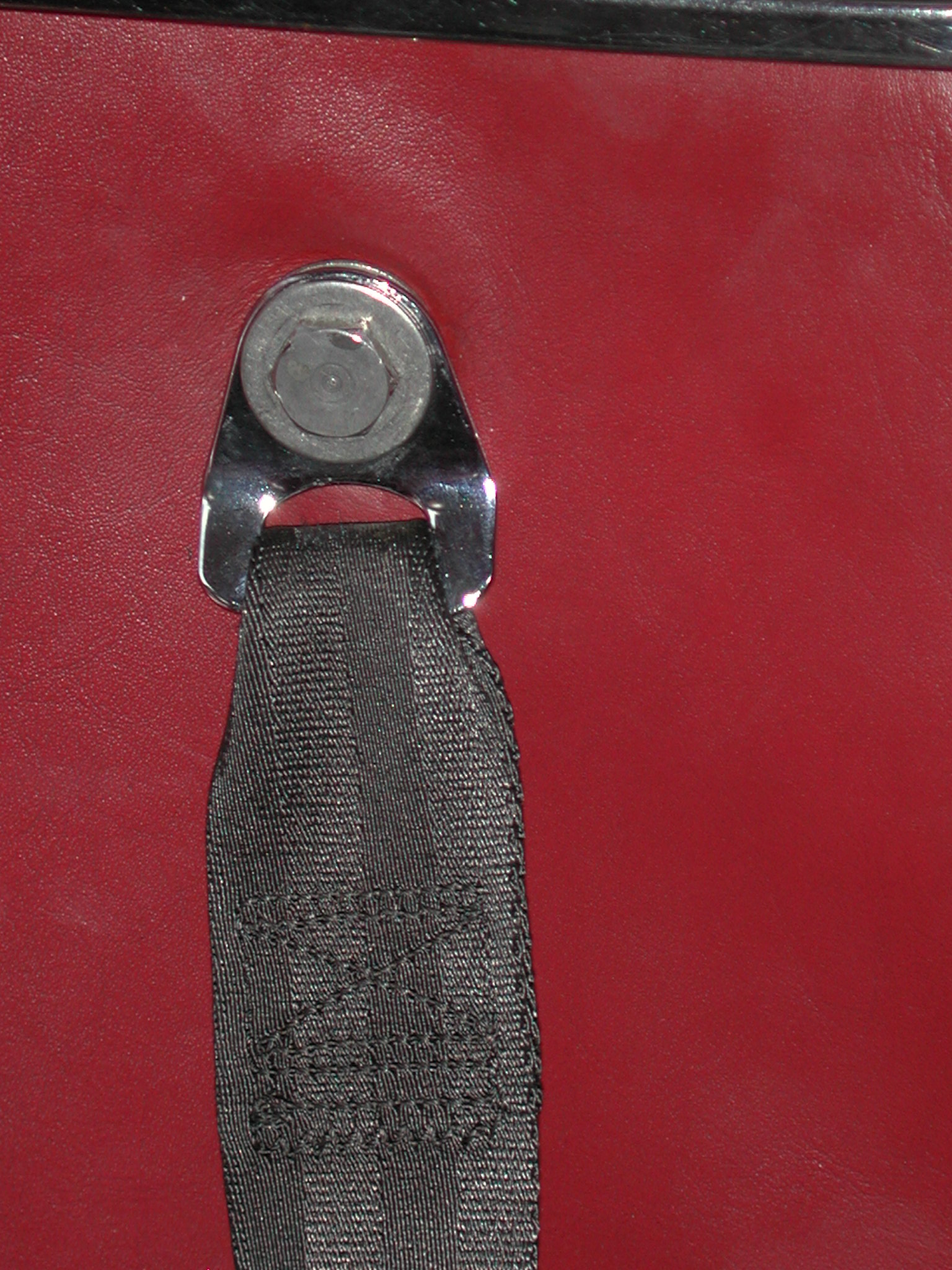

Shoulder harness mount
(on dogleg panel)

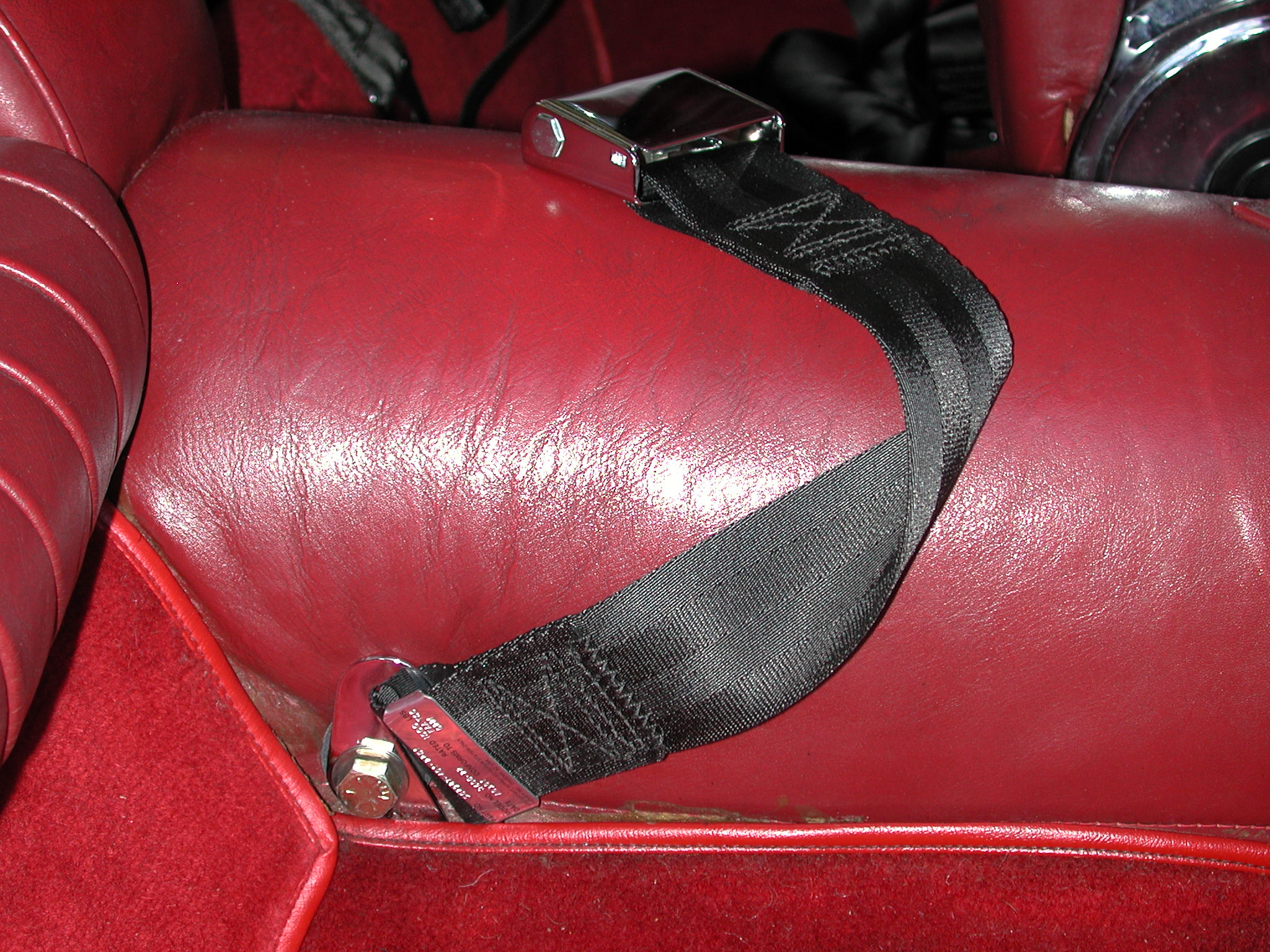

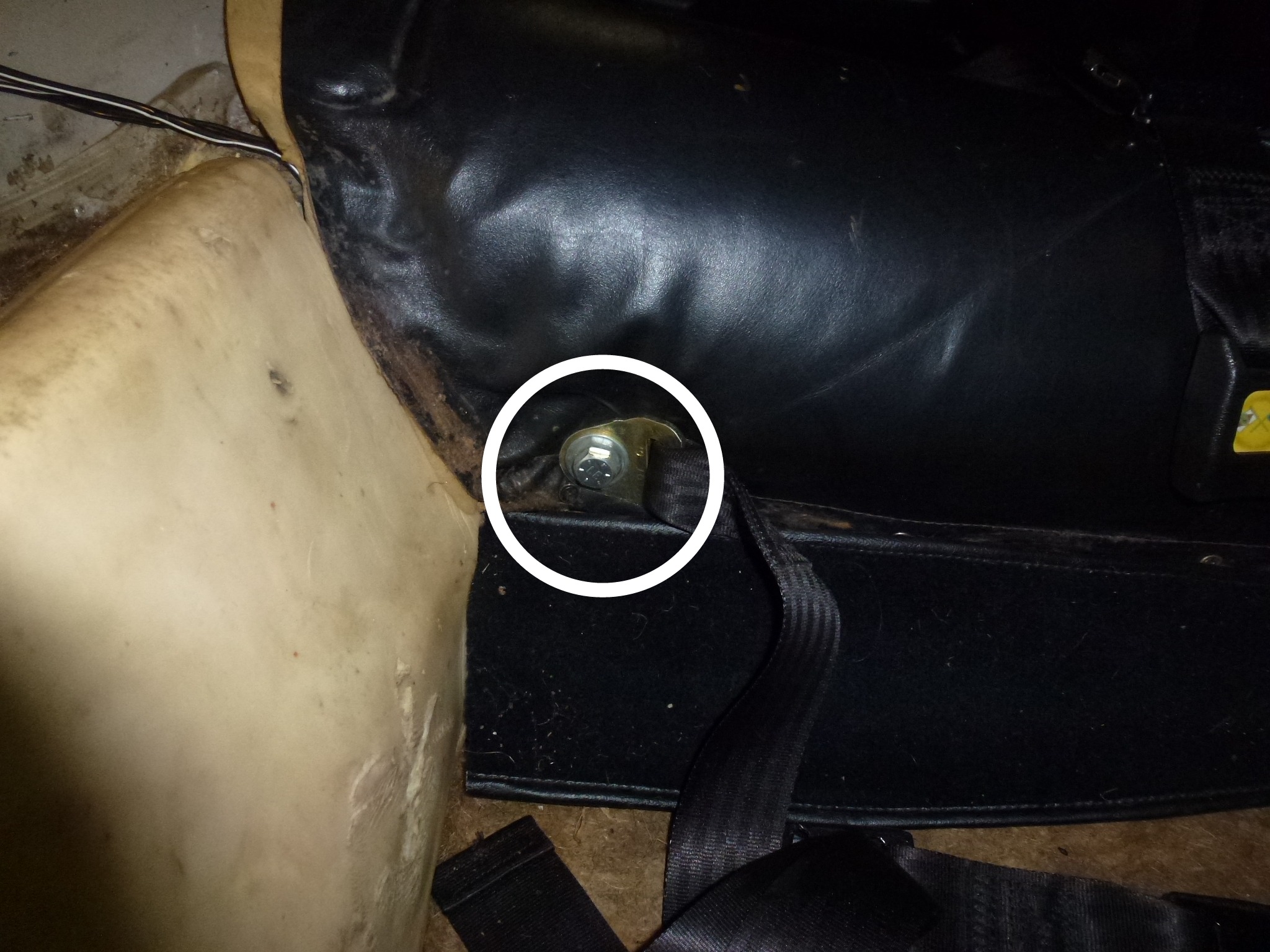

Inner seat belt mount
(on transmission tunnel)

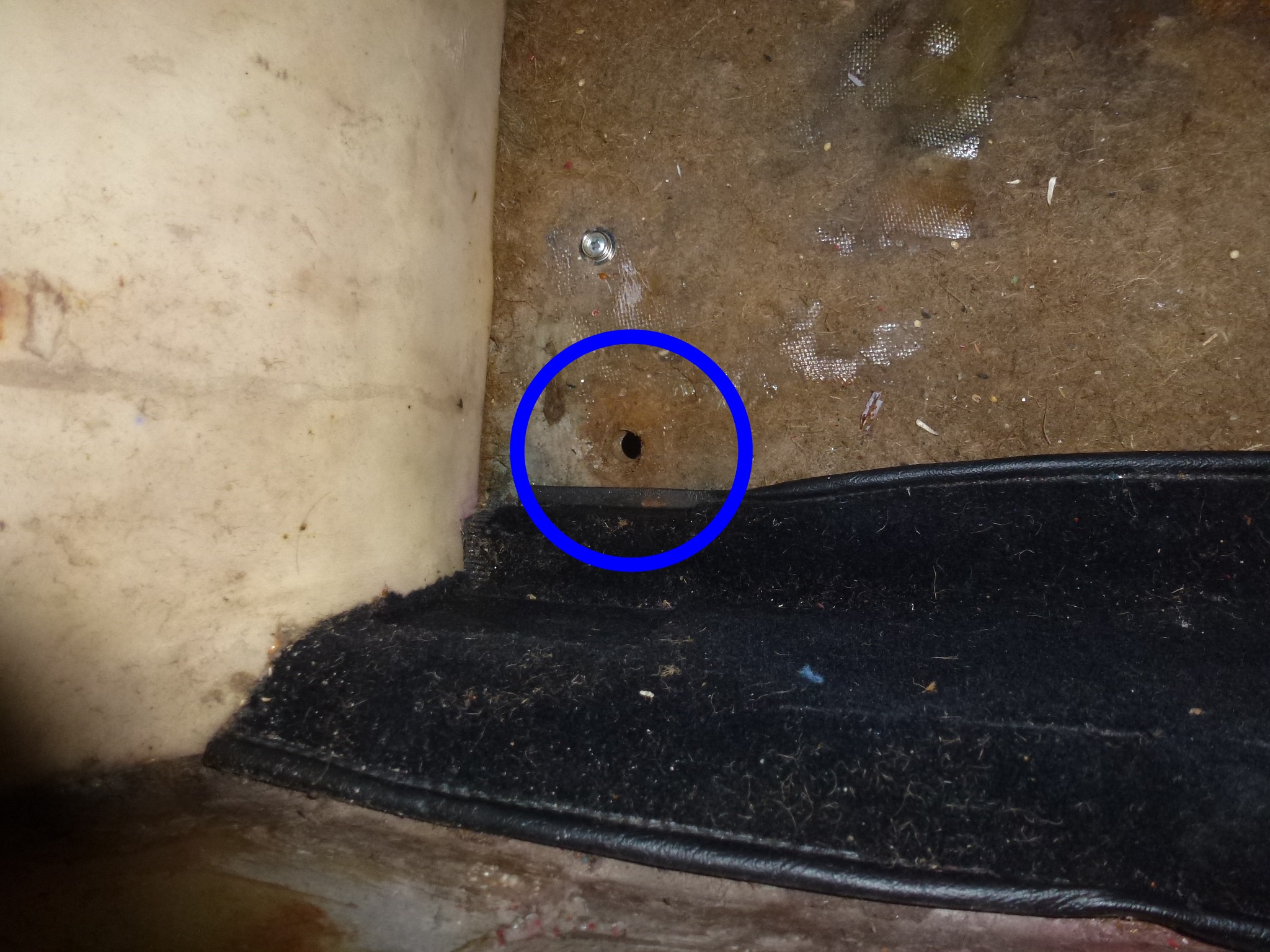

Outer seat belt mount
(through floor)


Behind dogleg panel

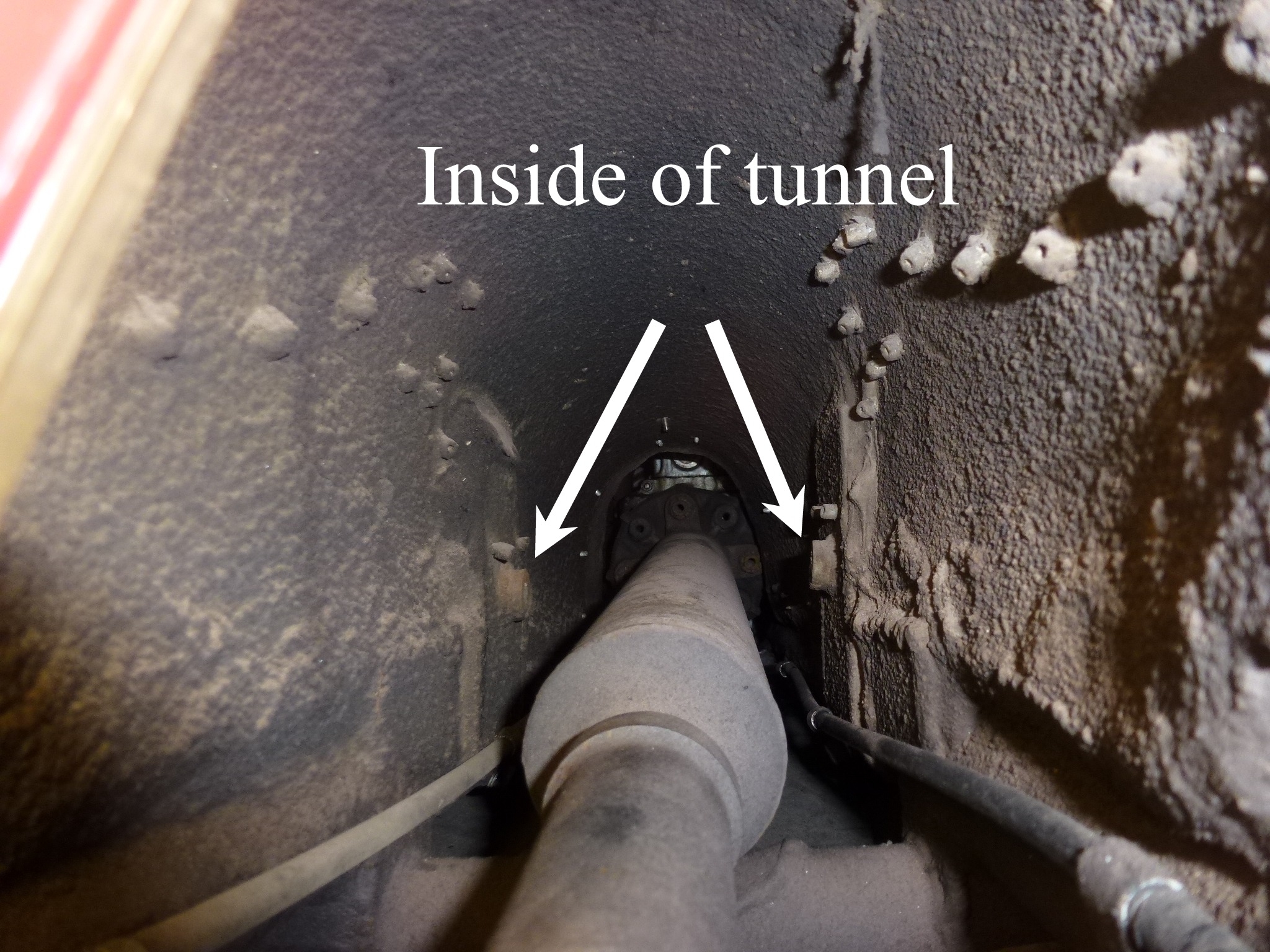

Inside of tunnel

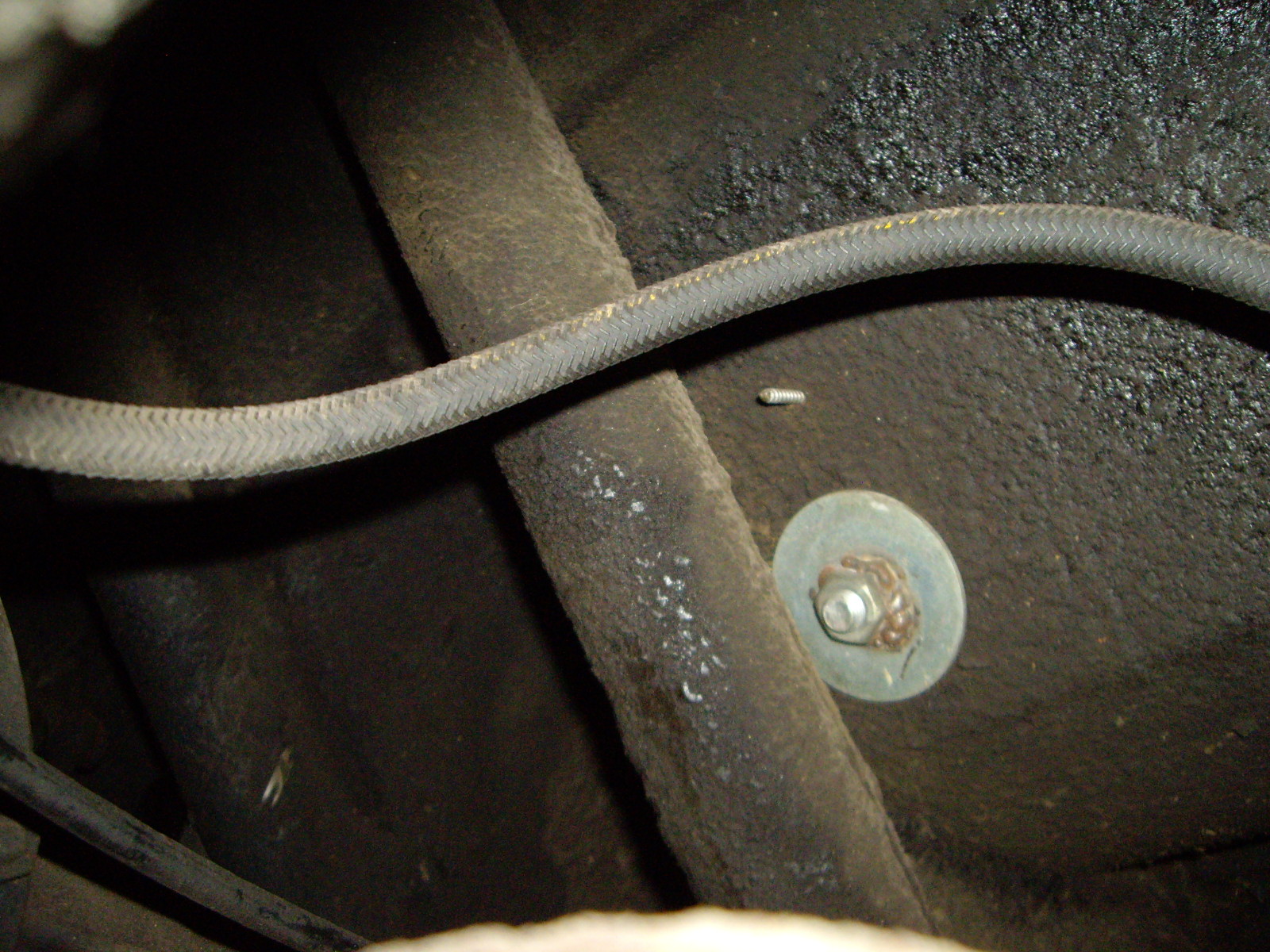

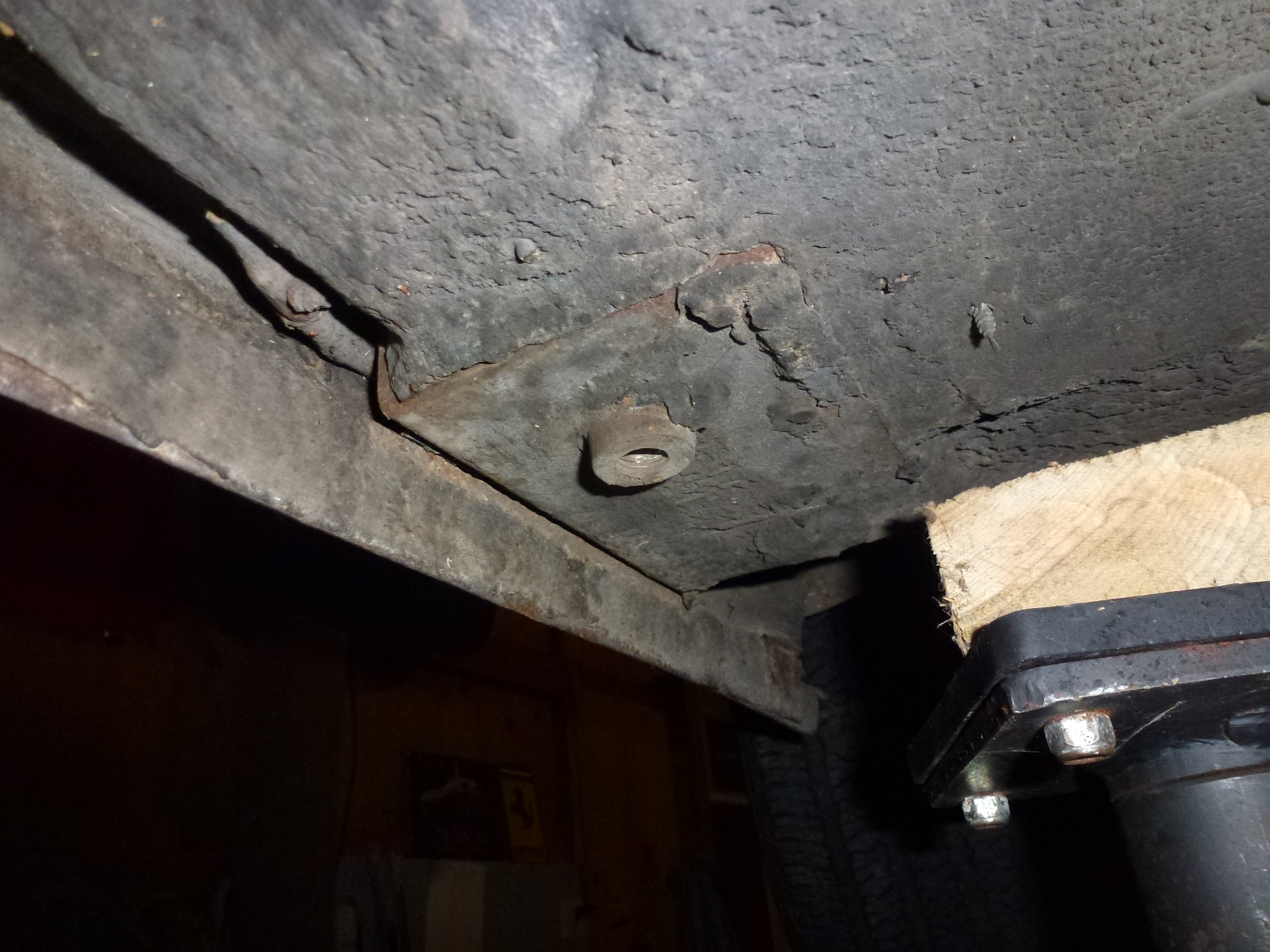

Underside of floor

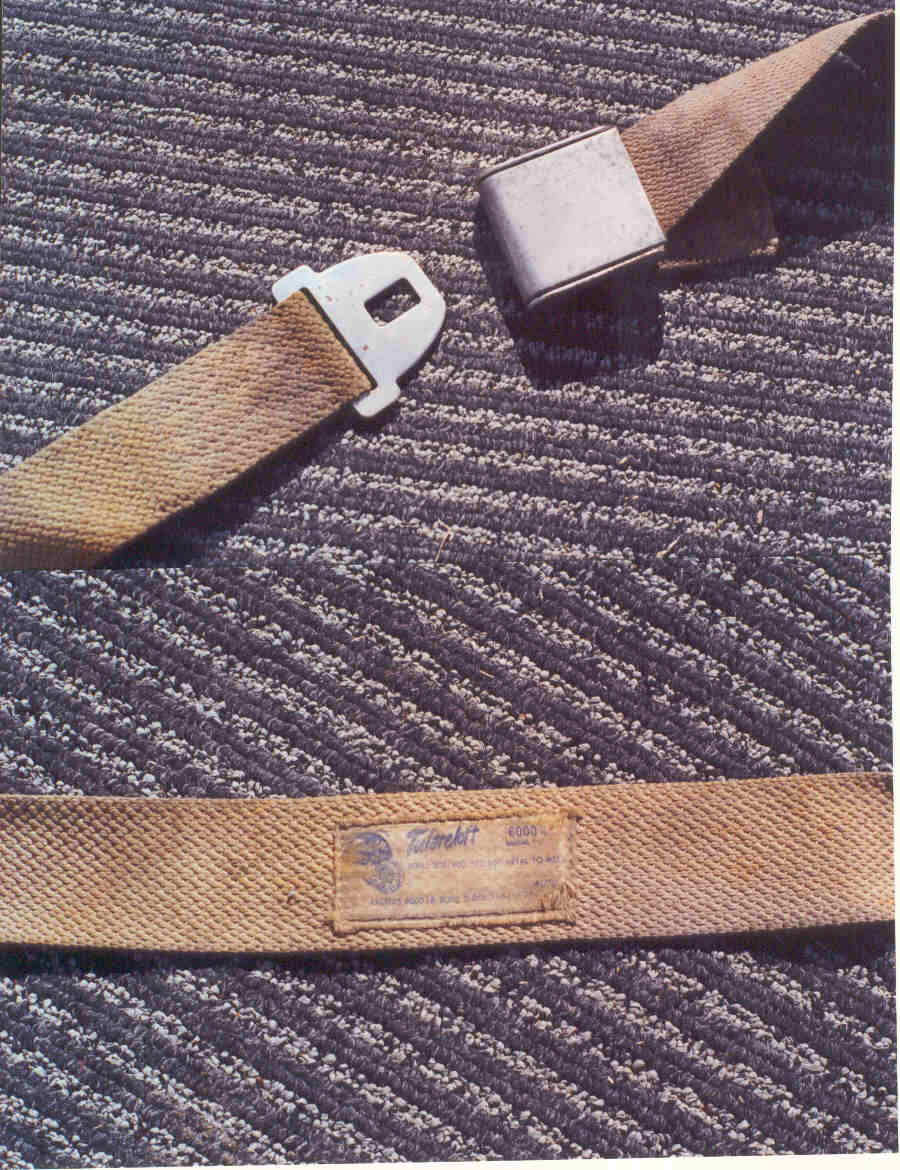

Original

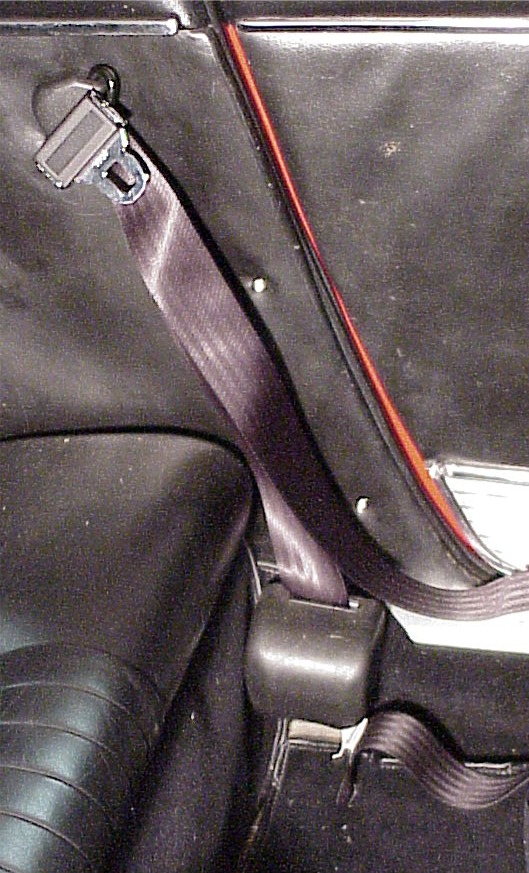

Example shoulder harness with exposed retractor

Retractor

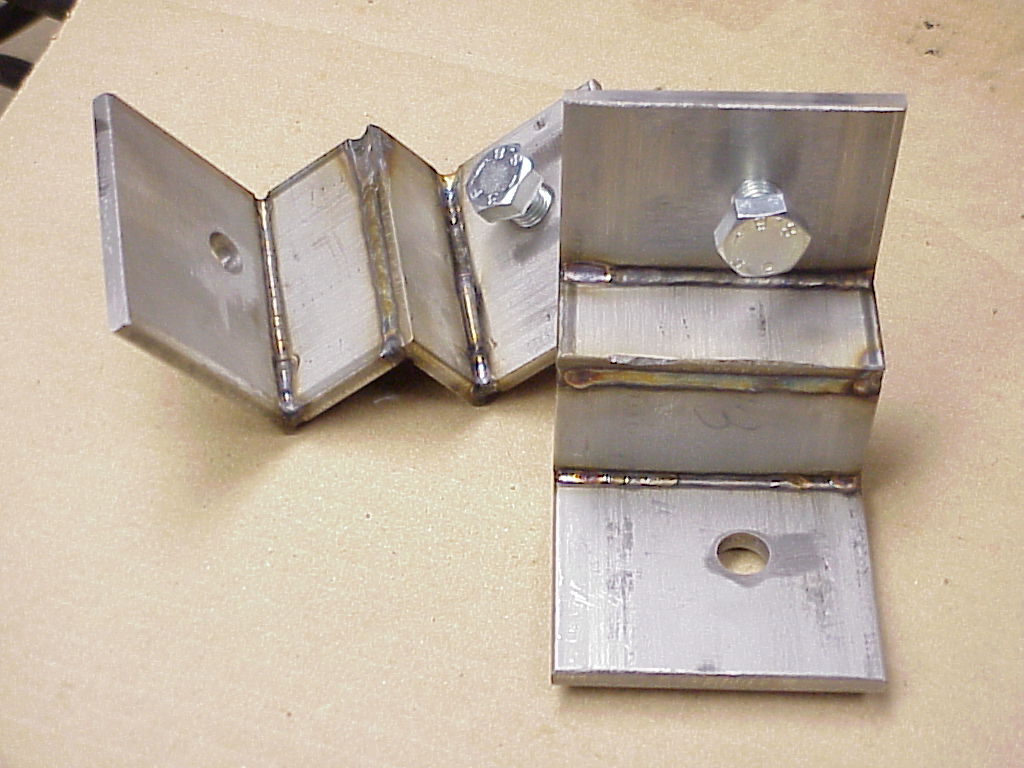

Bracket

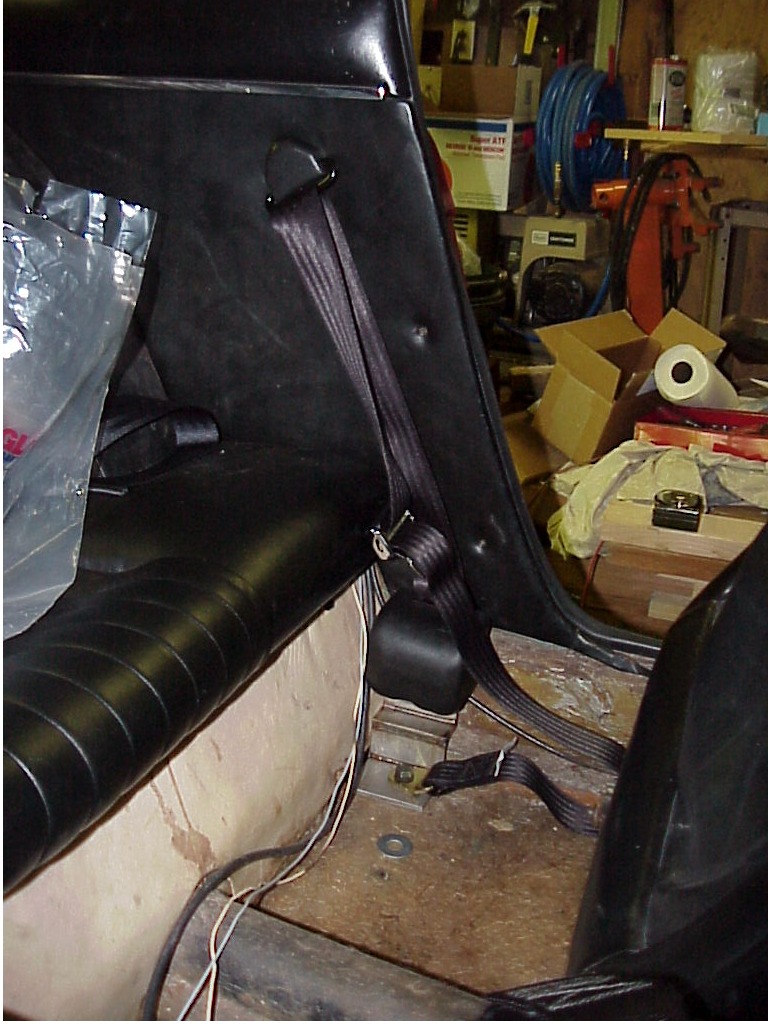

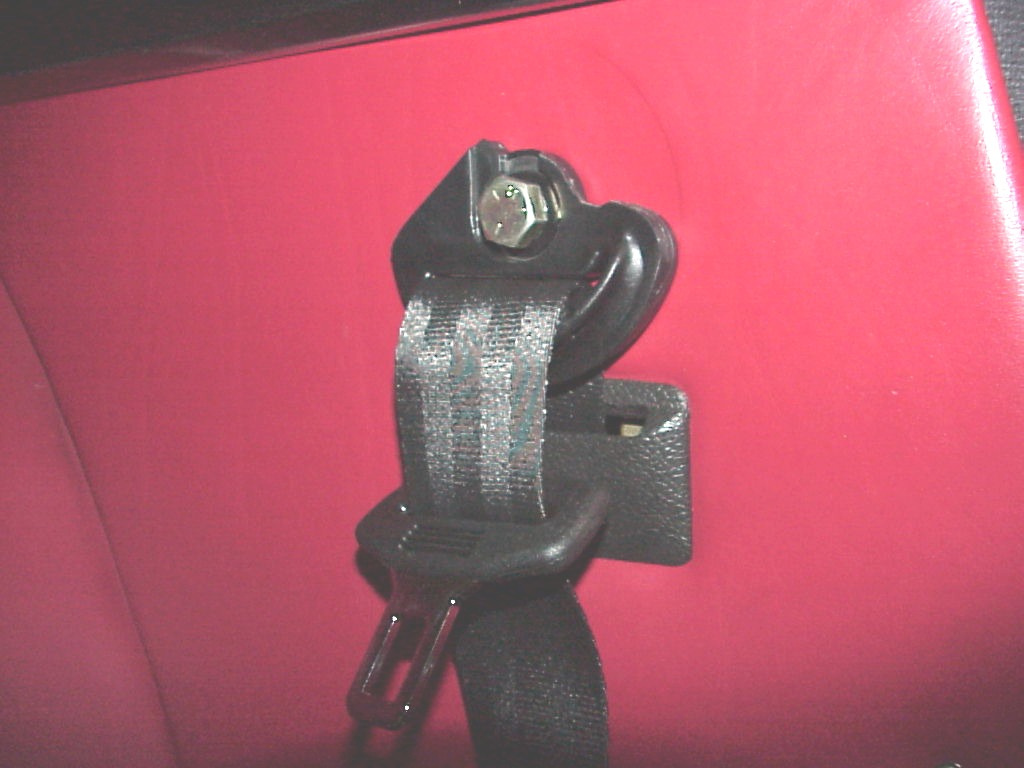

Installation

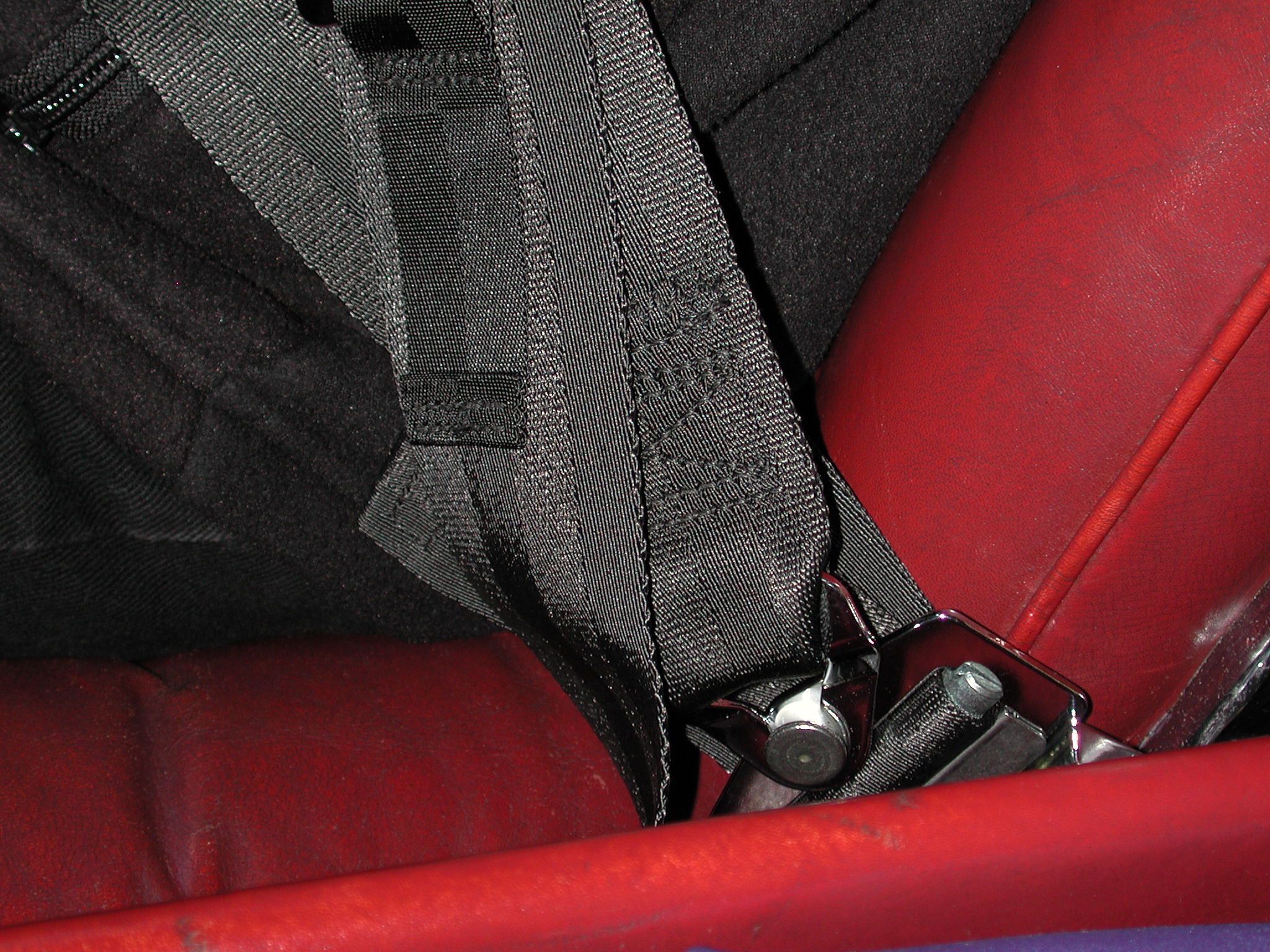

Example shoulder harness , non-retractable

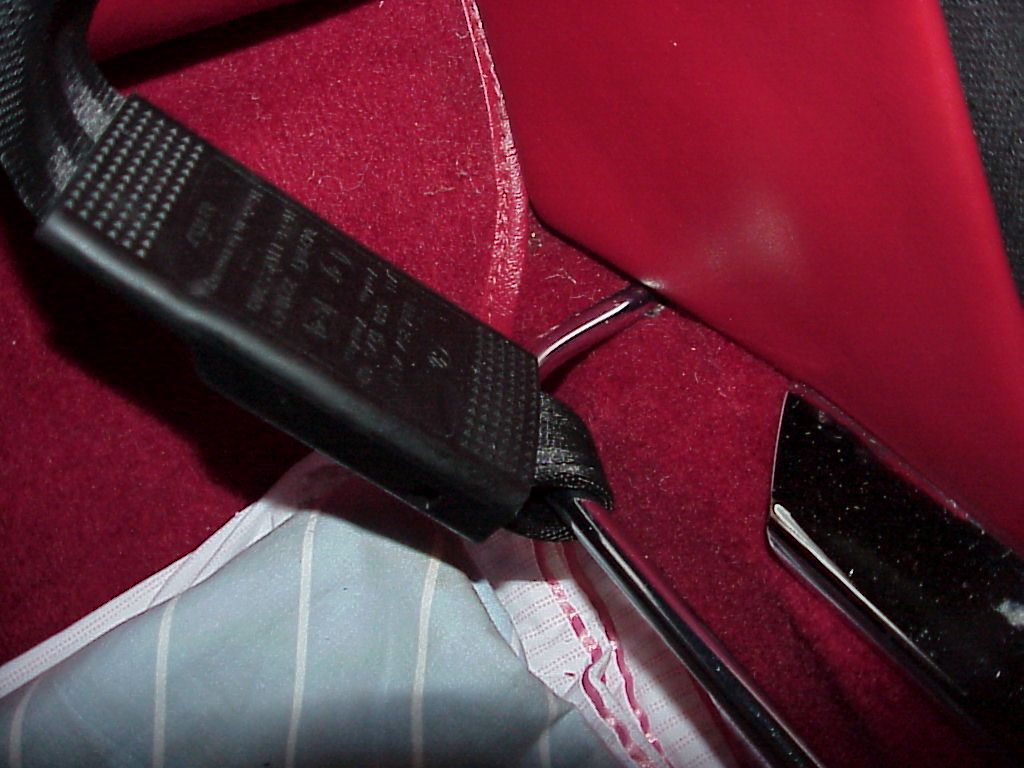

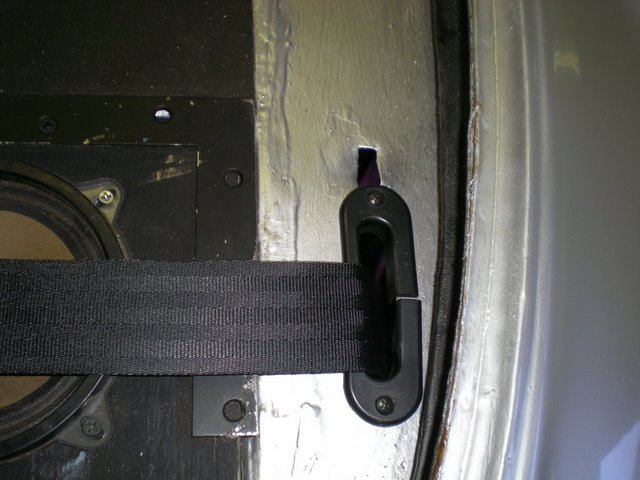

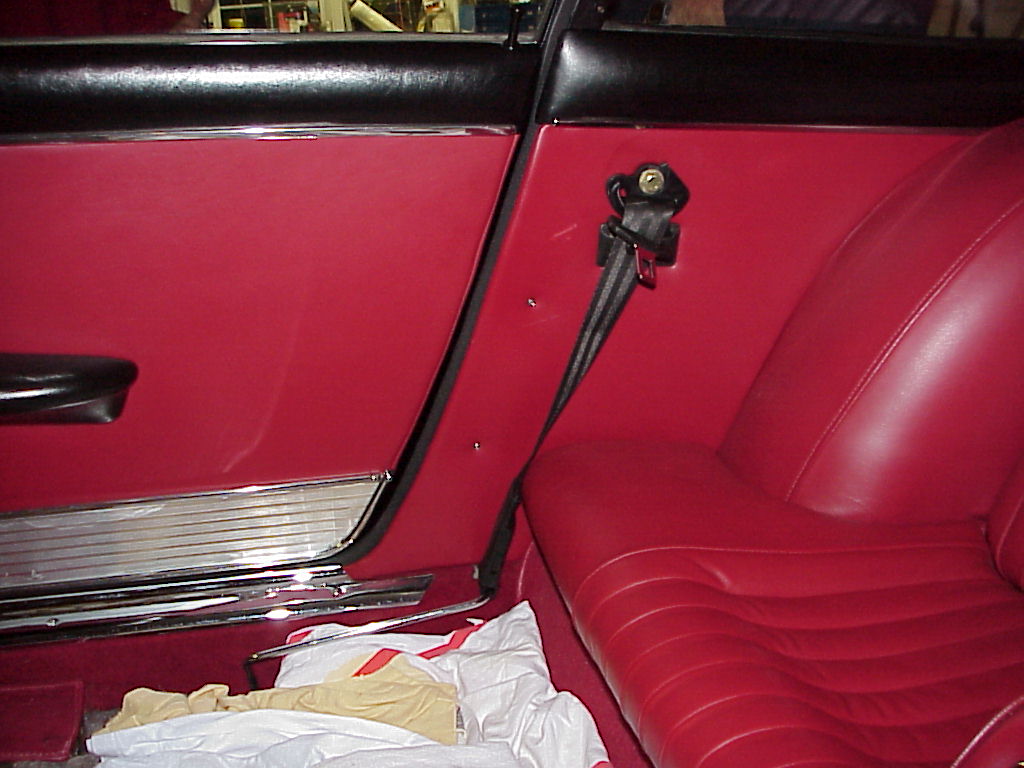

Example shoulder harness with hidden retractor

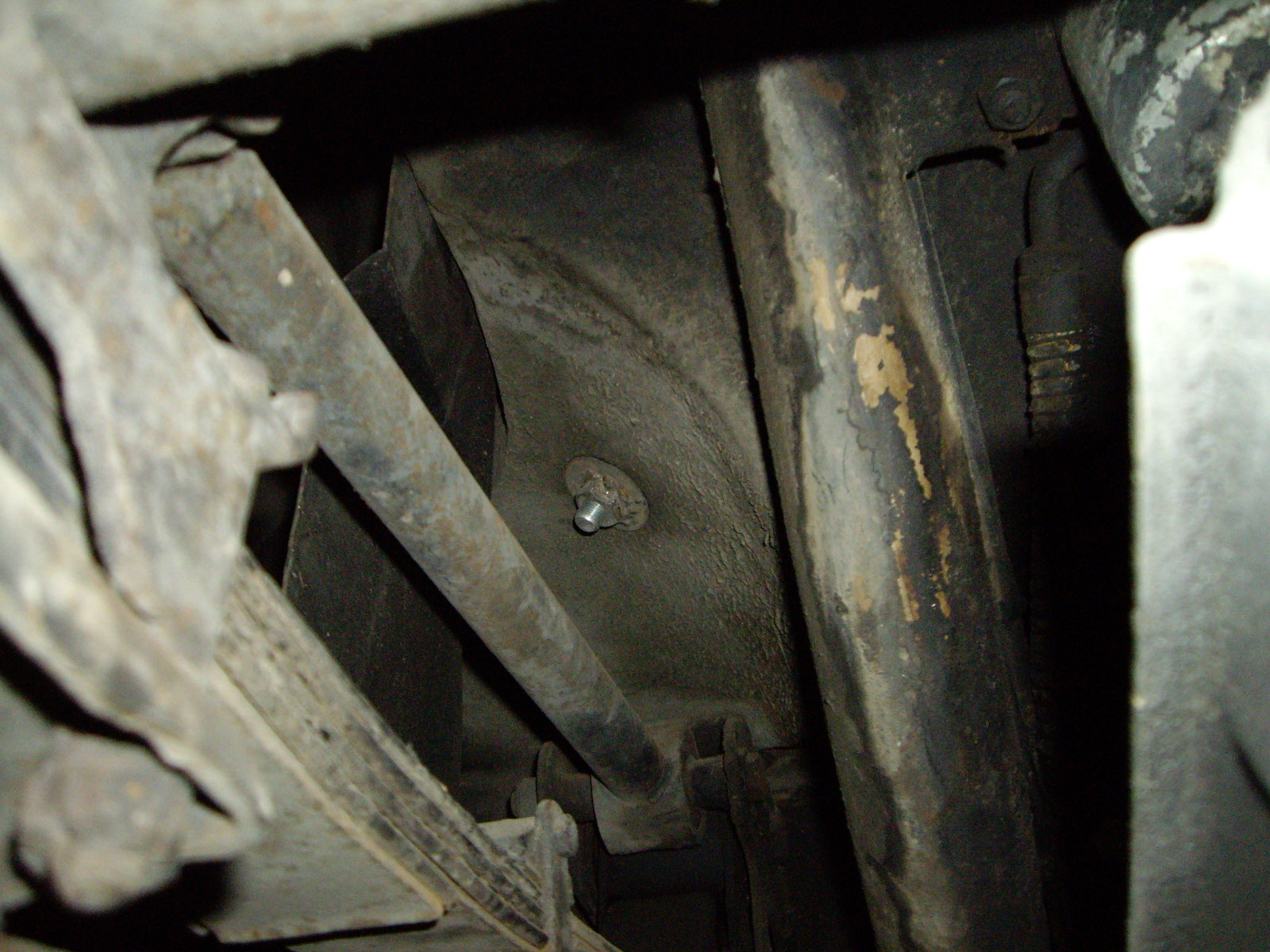

Rear

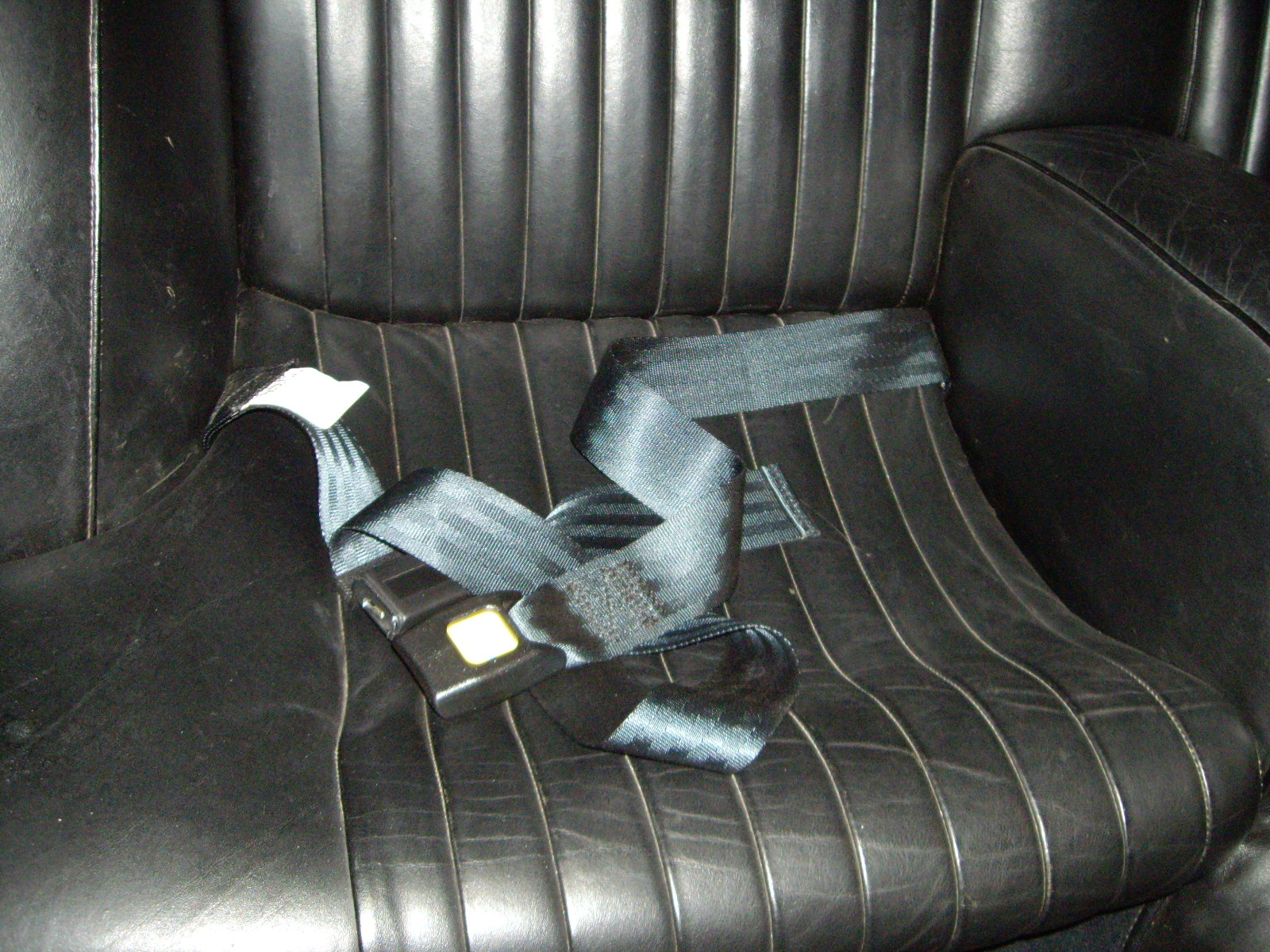

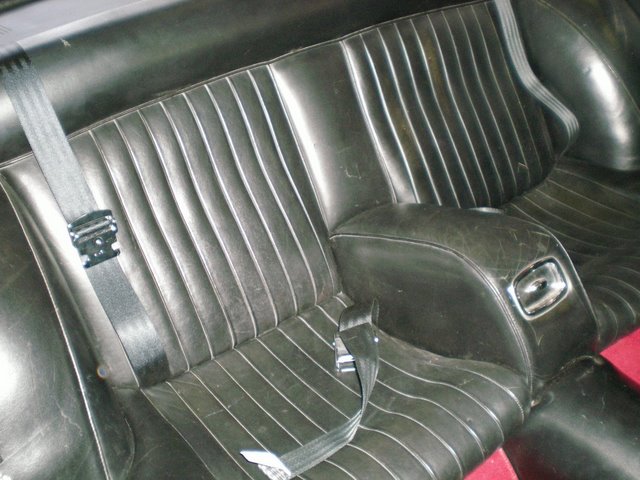

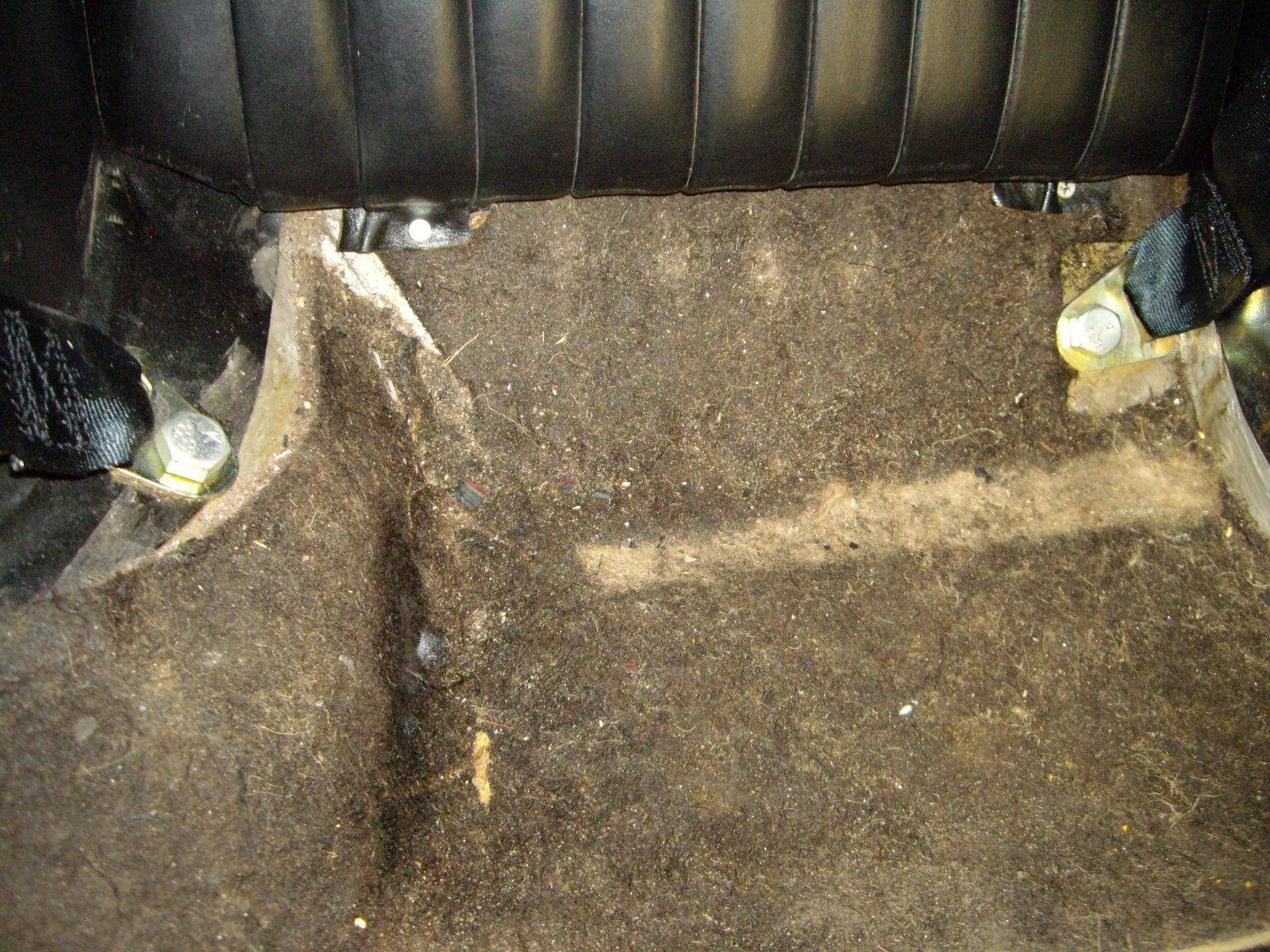

Example, belt only

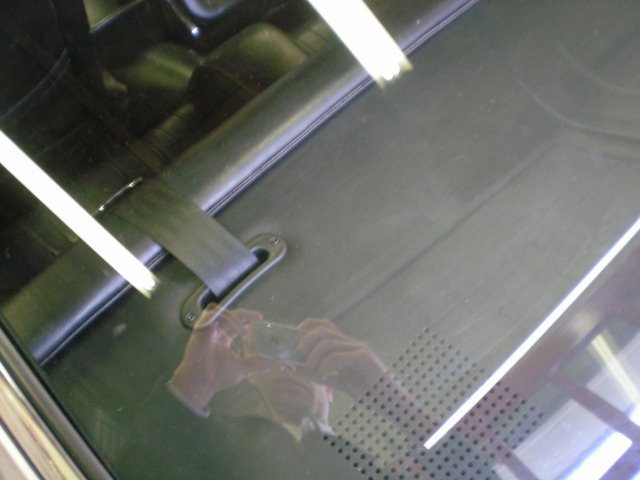

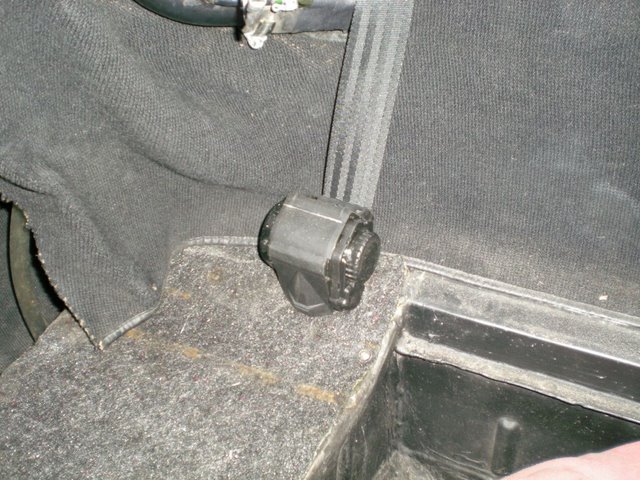

Example shoulder harness with retractor in trunk
