Clamps
There are three types of clamps originally used on the 330 GT. These are Cheney, copiglia and Corbin clamps.
The copiglia clamps are used on the heater hoses, radiator overflow, cowl drain hoses, heater and defrost hoses, etc. They come in 2 widths, 5mm and 9mm.
 |
 |

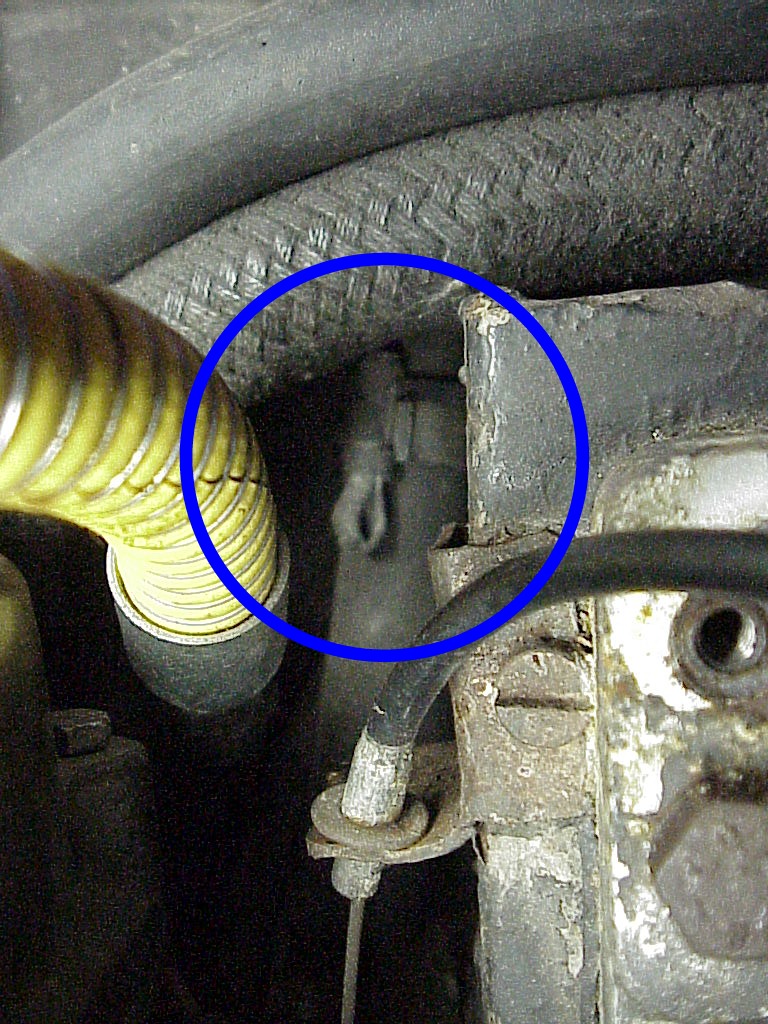

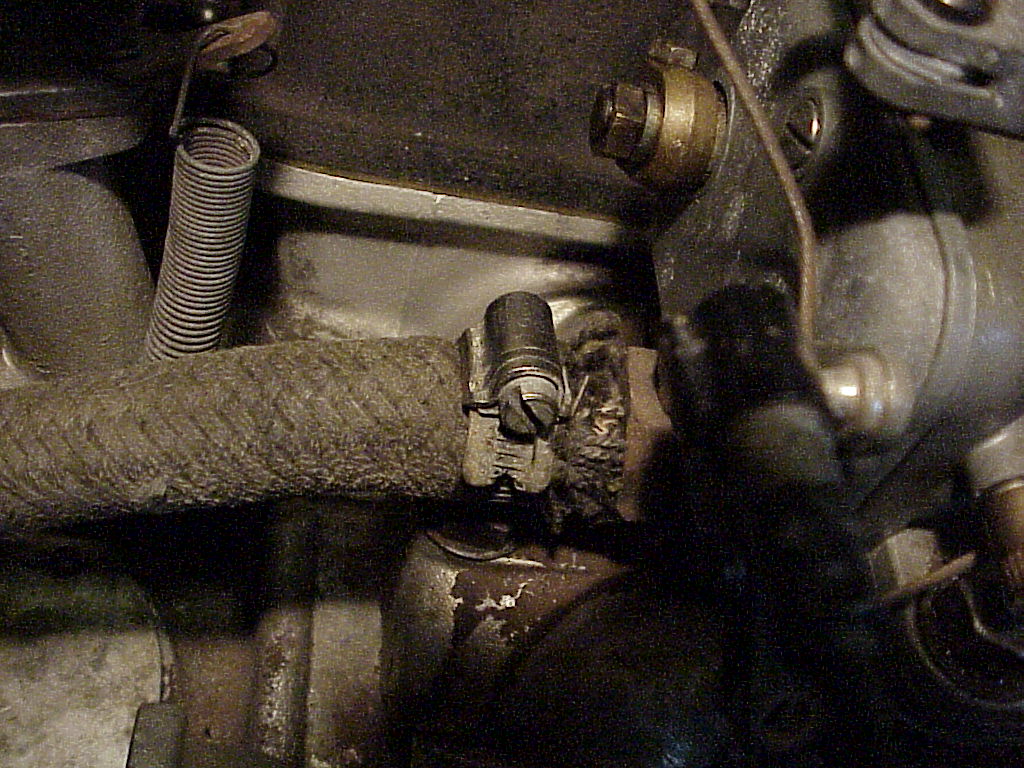

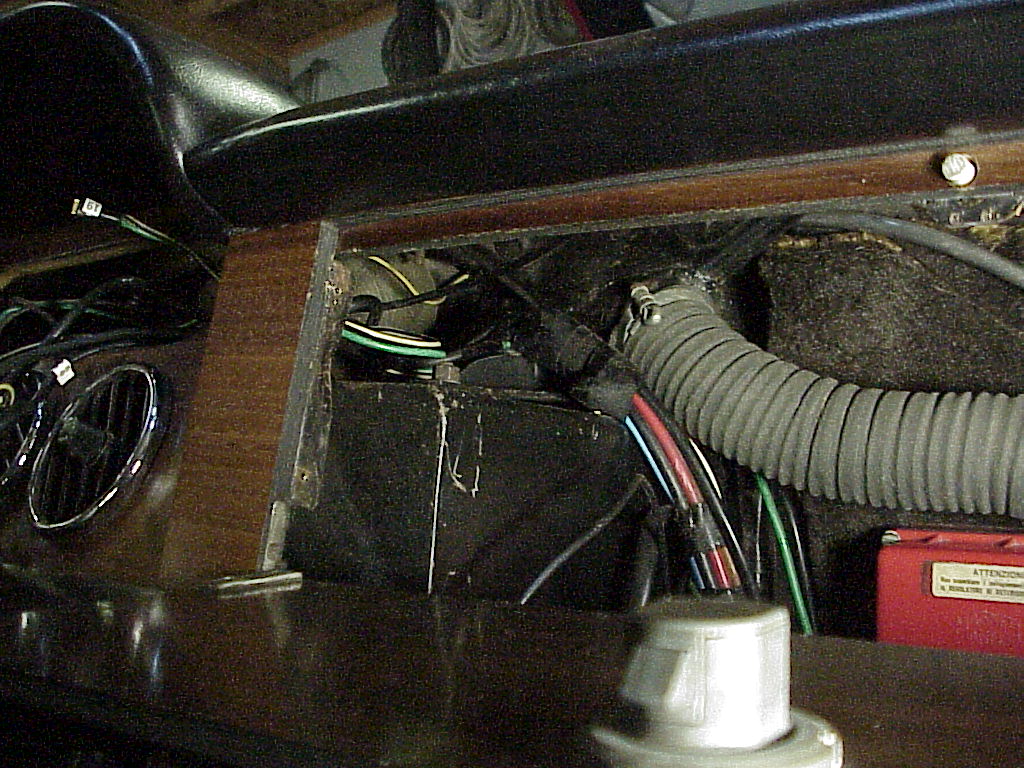

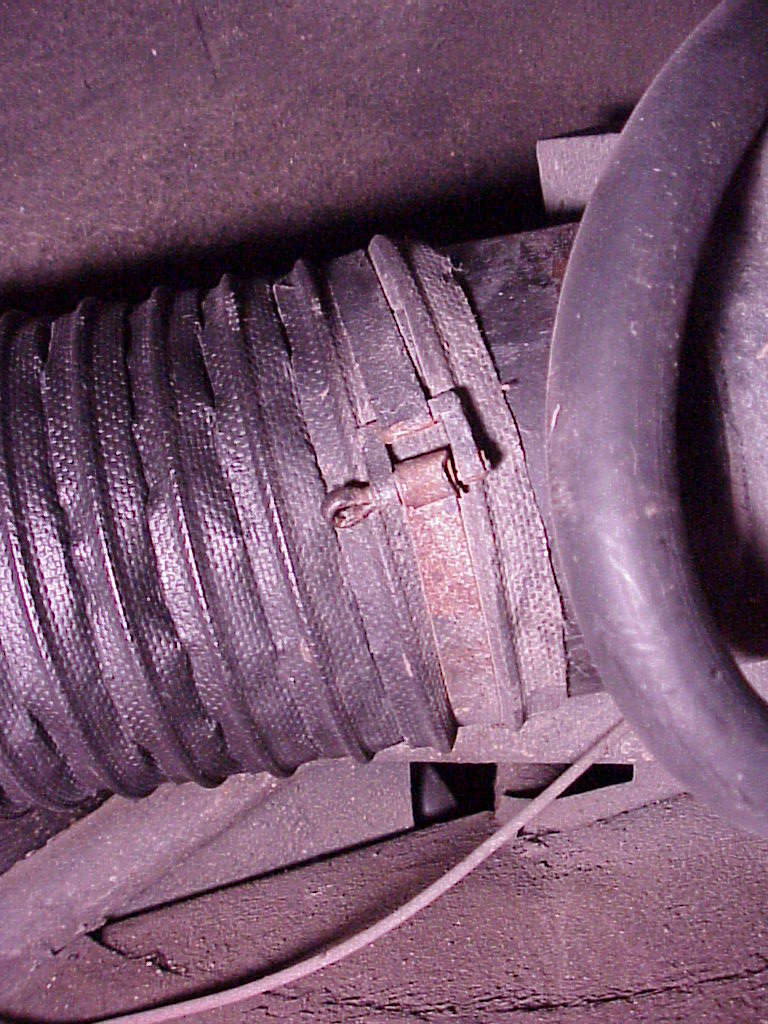

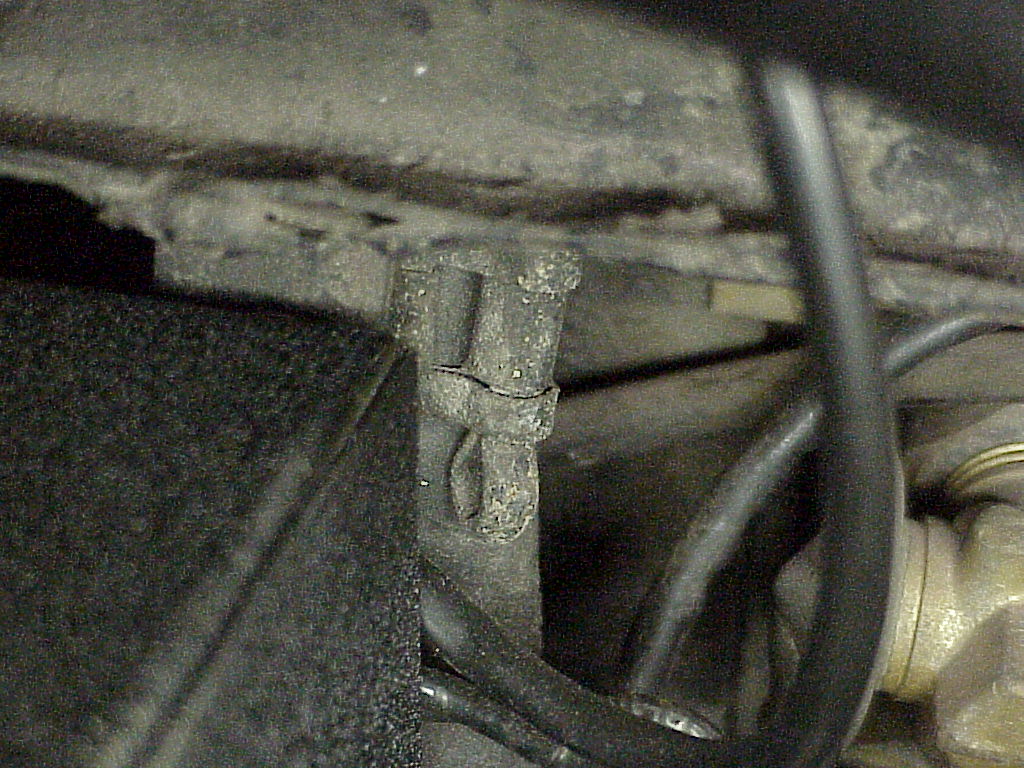

| Cowl drain, by brake support | Air duct hose from blower to heater box |
 |
 |

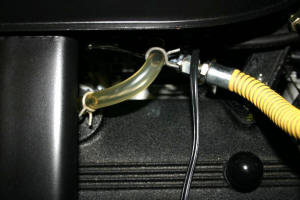

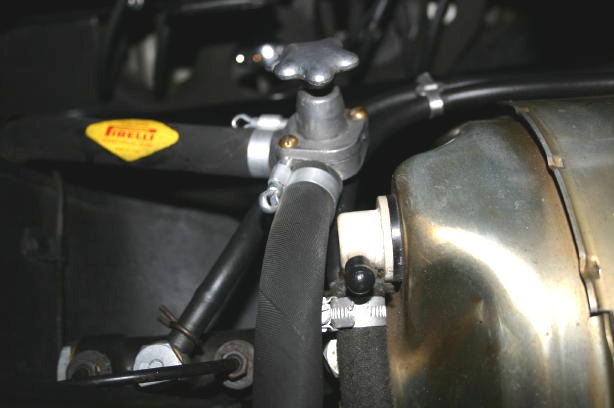

| Manual heater valves† | Cowl drain, by fuse box |
 |
 |

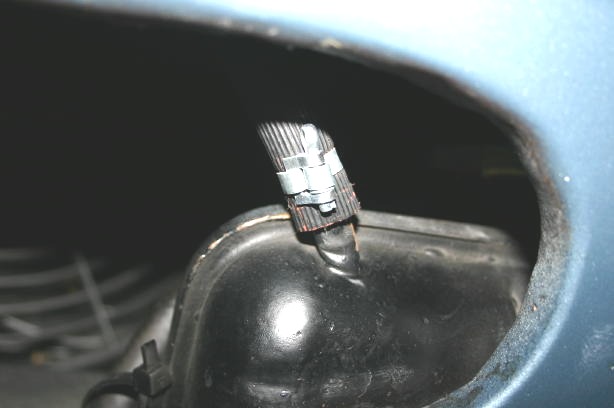

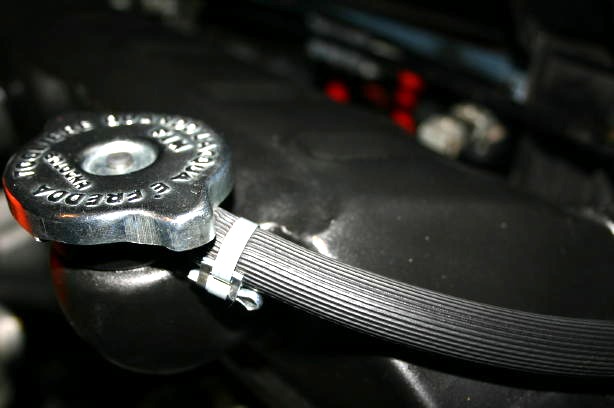

| Radiator overflow hose† | Radiator overflow hose at overflow tank† |
 |
|

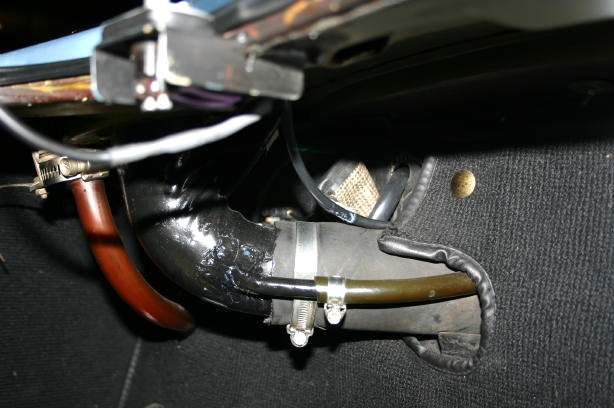

| Defroster hose under dash | |
Corbin (spring wire) clamps are used for small hoses where there is no pressure. Their main purpose is to prevent the hose from slipping off rather than a tight seal.
 |
 |

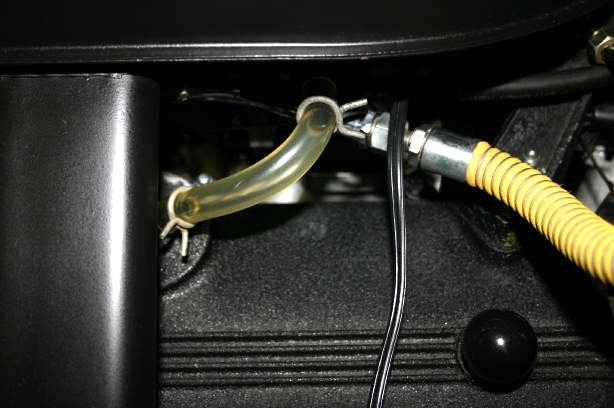

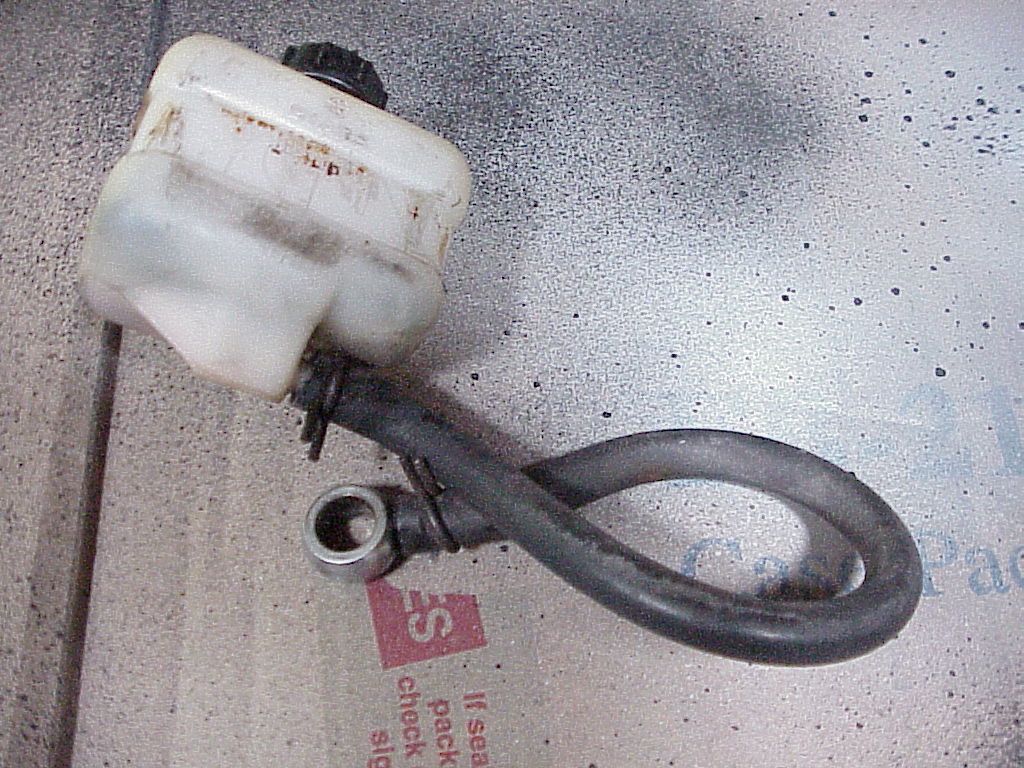

| Both ends of brake reservoir hose | Crankcase vent hose† |
Cheney clamps are similar to the normal hose clamps you would buy at any auto supply store. The main difference is that the band is not slotted for the screw threads. Instead, the band has indentations for the threads. These are common on English cars of the same era, so a source might be a Jaguar garage's old parts box.
 |
 |

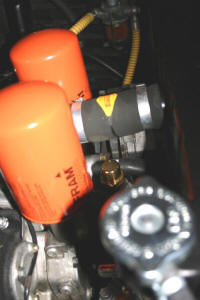

| Oil filler and breather hose‡ | Fuel filler hose† |
 |
 |

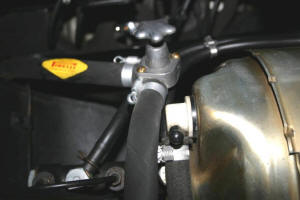

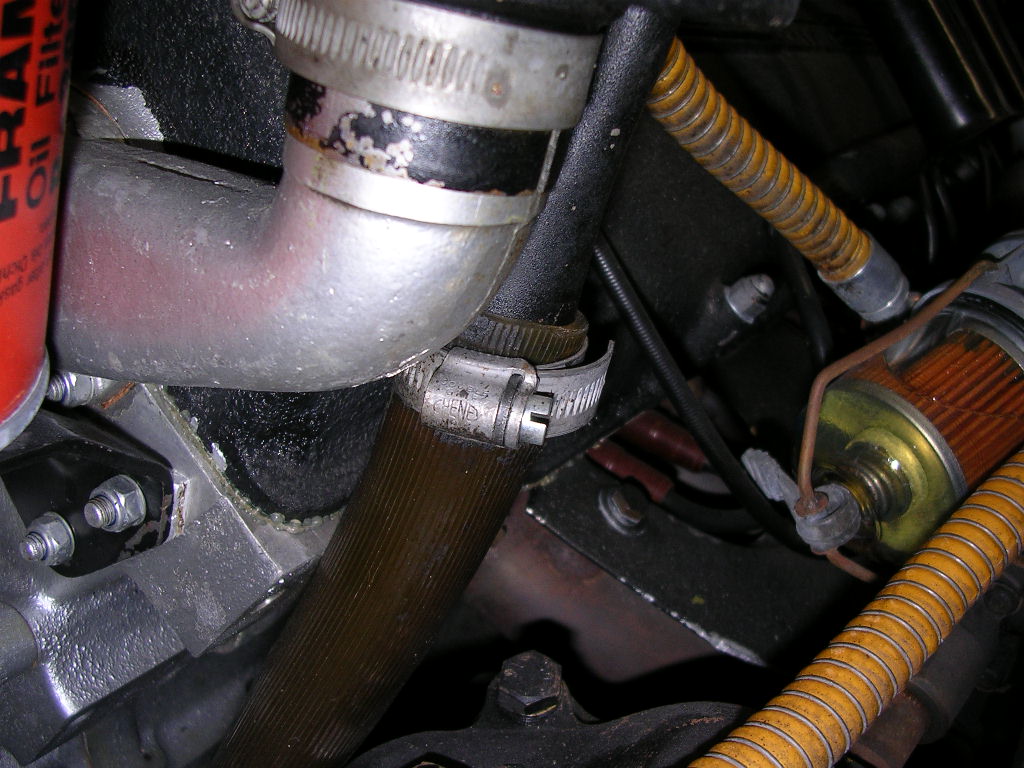

| Upper radiator hose† | Brake booster hose at carburetor |
Here are the locations and types of the various clamps, as derived from the Ferrari and Pininfarina parts books.
| Series 1 Clamps | |||||
| Location | Type | Size | Tav/Part # | Quantity | Ferrari/PF # |
|
Oil pickup |
Copiglia | 5mm | 11/25 | 2 | 18270 |
|
Oil breather |
Cheney | 35x41 | 15/41 | 2 | 35x41 |
|
Oil breather |
Cheney | 22x38 | 15/42 | 2 | 22x38 |
|
Brake vacuum hose |
Cheney | 0 | 31/4 | 6 | 94101 |
|
Upper radiator hose |
Cheney | 2A | 39/15 | 2 | 94103 |
|
Lower radiator hose |
Cheney | 1X | 39/28 | 2 | 94100 |
|
Radiator overflow hose |
None | 0 | |||
|
Heater hoses/engine end |
Copiglia | 9mm | 39/23 | 4 | 94909 |
|
Heater hoses/heater box end |
Copiglia | 9mm | 66/17* | 4 | 241.86.130.0.0 |
|
Heater hoses/manual shutoff |
Copiglia | 9mm | 4 | 94909 | |
|
Fuel filler hose |
Cheney | 3 | 40/8 | 2 | 94705 |
|
Fuel filler vent hose |
Copiglia | 5mm | 1 | 18270 | |
|
Heater air ducts |
Copiglia | 9mm | 66/21* | 12 | 242.86.552.0.0 |
|
Defroster ducts |
Copiglia | 9mm | 66/8* | 8 | 242.86.130.0.0 |
|
Fresh air ducts |
Copiglia | 9mm | 64/9* | 4 | 242.86.552.0.0 |
|
Cowl drain hoses |
Copiglia | 9mm | 64/7* | 2 | 242.86.130.0.0 |
|
Tav/Part # - Ferrari spare parts manual (no number) * - PF body parts manual |
|||||
| Series 2 Clamps | |||||
| Location | Type | Size | Tav/Part # | Quantity | Ferrari/PF # |
|
Oil pickup |
Copiglia | 5mm | 11/46 | 2 | 18270 |
|
Late oil pickup |
Copiglia | 5mm | 12/48** | 2 | 18270 |
|
Oil breather |
Cheney | 35x41 | 10/14 | 2 | 35x41 |
|
Oil breather |
Cheney | 22x38 | 10/17 | 2 | 22x38 |
|
Brake vacuum hose |
Cheney | 0 | 6/19 | 2 | 94101 |
|
Brake/clutch reservoir hoses |
Corbin | 27/28 | 6 | 94951 | |
|
Upper radiator hose |
Cheney | 2A | 36/8 | 2 | 94103 |
|
Lower radiator hose |
Cheney | 1X | 36/44 | 2 | 94100 |
|
Radiator overflow hose |
Copiglia | 5mm | 36/11 | 3 | 18270 |
|
Radiator bypass hose |
Copiglia | 9mm | 36/5 | 2 | 94909 |
|
Heater hoses/heater valve end |
Copiglia | 9mm | 36/21 | 2 | 94909 |
|
Heater hoses/heater box end |
Copiglia | 9mm | 66/17* | 4 | 241.86.130.0.0 |
|
Heater hoses/manual shutoff |
Copiglia | 9mm | 36/21 | 4 | 94909 |
|
Heater hoses/return end |
Copiglia | 9mm | 36/21 | 2 | 94909 |
|
Late heater hoses/heater valve end |
Copiglia | 9mm | 36/19** | 3 | 80815 |
|
Late heater hoses/heater box end |
Copiglia | 9mm | 66/17* | 4 | 241.86.130.0.0 |
|
Late heater hoses/manual shutoff |
Copiglia | 9mm | 36/19** | 4 | 80815 |
|
Late heater hoses/return end |
Copiglia | 9mm | 36/19** | 2 | 80815 |
|
Fuel filler hose |
Cheney | 3 | 37/7 | 2 | 94705 |
|
Fuel filler vent hose |
Copiglia | 5mm | 37/9 | 1 | 18270 |
|
Fuel return hose |
Corbin | 8/3** | 2 | 94951 | |
|
Crankcase ventilation tubing |
Corbin | 7/5** | 10 | 94951 | |
|
A/C drain hoses |
Copiglia | 9mm | 2 | 80815 | |
|
Heater air ducts |
Copiglia | 9mm | 66/21* | 12 | 242.86.552.0.0 |
|
Defroster ducts |
Copiglia | 9mm | 66/8* | 8 | 242.86.130.0.0 |
|
Fresh air ducts |
Copiglia | 9mm | 64/9* | 4 | 242.86.552.0.0 |
|
Cowl drain hoses |
Copiglia | 9mm | 64/7* | 2 | 242.86.130.0.0 |
|
Tav/Part # - Ferrari 1965 spare parts catalog (05/66) * - PF body parts manual ** - GTC parts manual (16/67) |
|||||
† Photos courtesy of Buddy Obara (SN 9667)
‡ Photo courtesy of Ed Montini (SN 8289)
